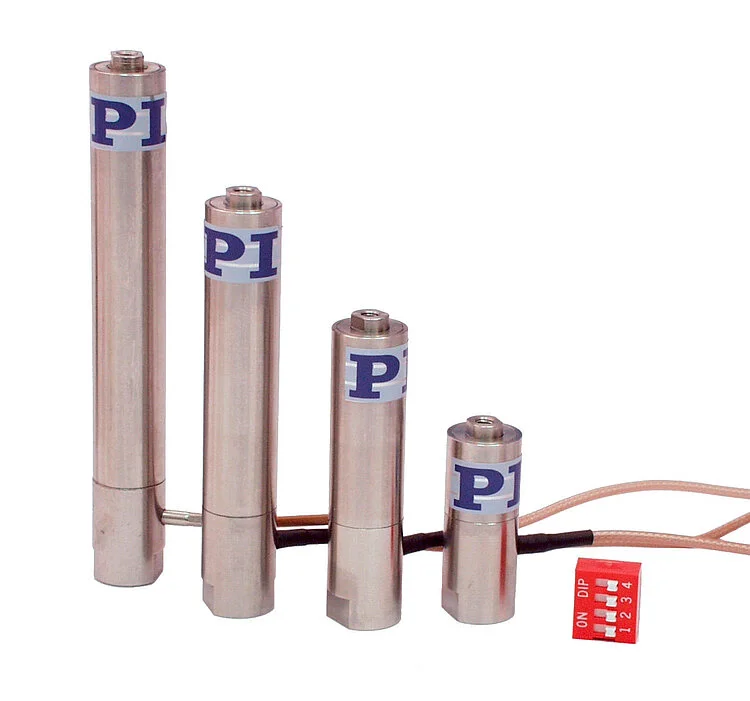

PI普爱 P-841.30 预加载压电执行器

高负载和力矩的紧凑型执行器，带位置传感器

由于PICMA®压电驱动器，使用寿命长

行程范围达90微米

紧凑型外壳

推力容量达1000牛顿

拉力容量达50牛顿

微秒级响应时间亚纳米级分辨率

带球形尖端的版本

产品描述

应用领域

静态和动态高精度定位

光纤定位

激光调谐

纳米技术

由于PICMA®压电驱动器，使用寿命极长

PICMA®压电驱动器是全陶瓷绝缘的。这使它们免受湿度和由于泄漏电流增加而导致的故障的影响。PICMA®驱动器的使用寿命比传统聚合物绝缘驱动器长十倍。经过验证，1000亿次循环无一次故障。

Motion	Filter	P-841.10	P-841.1B	P-841.20	P-841.2B	P-841.30	P-841.3B	P-841.40	P-841.4B	P-841.60	P-841.6B	Tolerance
Active axes		Z	Z	Z	Z	Z	Z	Z	Z	Z	Z
Travel range in Z	-	15 µm	15 µm	30 µm	30 µm	45 µm	45 µm	60 µm	60 µm	90 µm	90 µm
Positioning	Filter	P-841.10	P-841.1B	P-841.20	P-841.2B	P-841.30	P-841.3B	P-841.40	P-841.4B	P-841.60	P-841.6B	Tolerance
Resolution in Z, open loop	-	0.15 nm	0.15 nm	0.3 nm	0.3 nm	0.45 nm	0.45 nm	0.6 nm	0.6 nm	0.9 nm	0.9 nm	typ.
Integrated sensor		SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring	SGS, direct position measuring
System resolution in Z	-	0.3 nm	0.3 nm	0.6 nm	0.6 nm	0.9 nm	0.9 nm	1.2 nm	1.2 nm	1.8 nm	1.8 nm
Drive Properties	Filter	P-841.10	P-841.1B	P-841.20	P-841.2B	P-841.30	P-841.3B	P-841.40	P-841.4B	P-841.60	P-841.6B	Tolerance
Drive type		PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®	PICMA®
Electrical capacitance in Z	-	1.5 µF	1.5 µF	3 µF	3 µF	4.5 µF	4.5 µF	6 µF	6 µF	9 µF	9 µF	±20 %
Mechanical Properties	Filter	P-841.10	P-841.1B	P-841.20	P-841.2B	P-841.30	P-841.3B	P-841.40	P-841.4B	P-841.60	P-841.6B	Tolerance
Stiffness in Z	-	57 N/µm	57 N/µm	27 N/µm	27 N/µm	19 N/µm	19 N/µm	15 N/µm	15 N/µm	10 N/µm	10 N/µm	±20 %
Resonant frequency in Z, unloaded	-	18 kHz	18 kHz	14 kHz	14 kHz	10 kHz	10 kHz	8.5 kHz	8.5 kHz	6 kHz	6 kHz	±20 %
Permissible push force in Z		1000 N	1000 N	1000 N	1000 N	1000 N	1000 N	1000 N	1000 N	1000 N	1000 N	max.
Permissible pull force in Z		50 N	50 N	50 N	50 N	50 N	50 N	50 N	50 N	50 N	50 N	max.
Permissible torque in θZ		0.35 N·m		0.35 N·m		0.35 N·m		0.35 N·m		0.35 N·m		max.
Mass without cable	-	20 g	20 g	28 g	28 g	46 g	46 g	54 g	54 g	62 g	62 g	±5 %
Material		Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel	Housing / tip: Stainless steel
Length	-	32 mm	32 mm	50 mm	50 mm	68 mm	68 mm	86 mm	86 mm	122 mm	122 mm	±0,3 mm
Mechanical interface			Spherical tip		Spherical tip		Spherical tip		Spherical tip		Spherical tip
Miscellaneous	Filter	P-841.10	P-841.1B	P-841.20	P-841.2B	P-841.30	P-841.3B	P-841.40	P-841.4B	P-841.60	P-841.6B	Tolerance
Operating temperature range		-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C	-20 to 80 °C
Connector		LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250	LEMO FFA.00.250
Sensor connector		LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32	LEMO FFA.0S.304.CLAC32
Cable length		1 m	1 m	1 m	1 m	1 m	1 m	1 m	1 m	1 m	1 m
Recommended controllers / drivers		E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831	E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831

集成传感器：带有SGS的版本允许闭环线性度高达0.15%，并附带校准日志。

Z方向刚度：静态大信号刚度；动态小信号刚度大约高出30%。

系统的分辨率仅受放大器和测量技术的噪声限制，因为PI压电执行器无摩擦。
