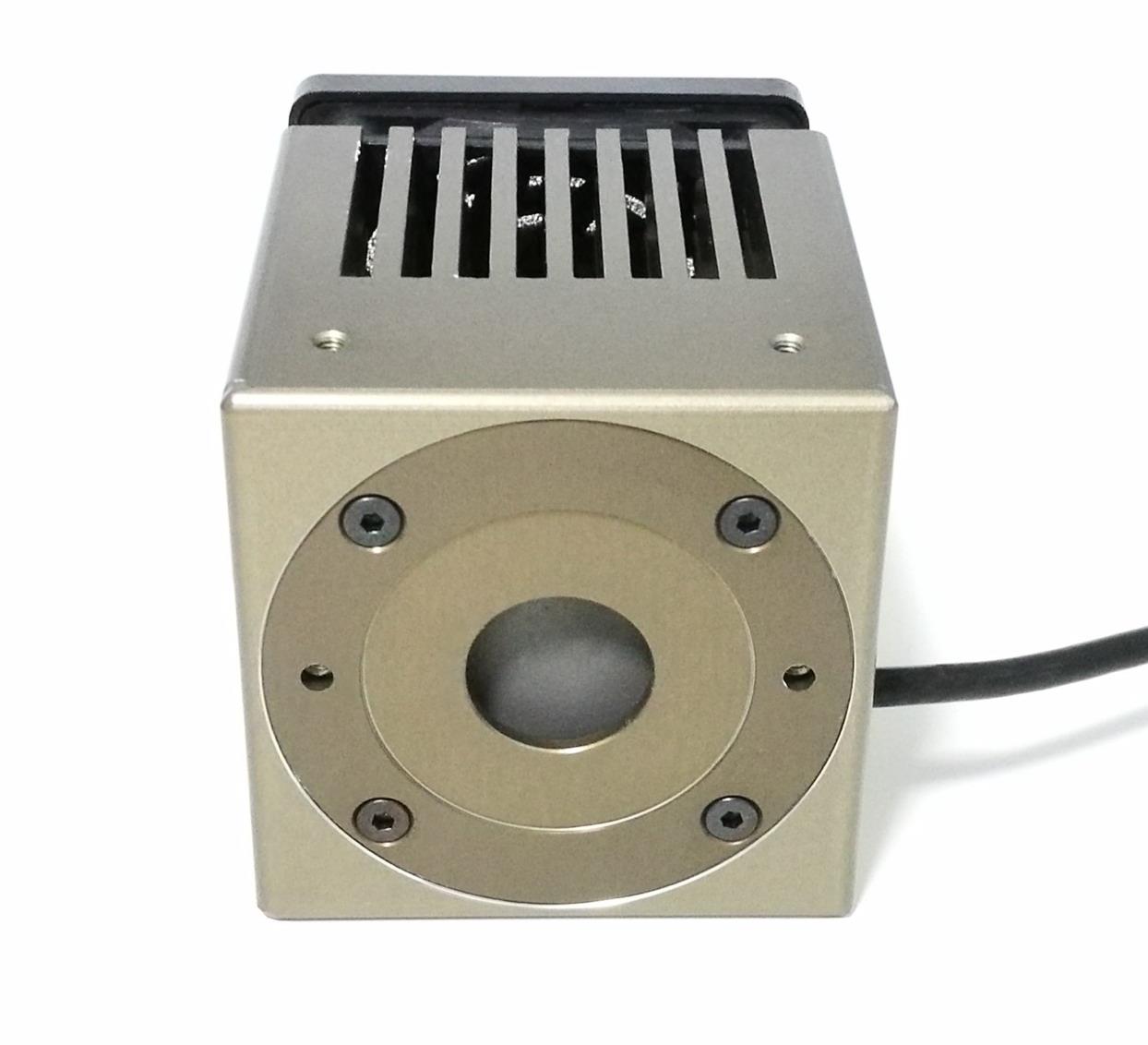

Sintec新特 SHY-TP小功率激光功率计
| 型号 | SHY-TP2-HP-19 | SHY-TP10-HP-25 | SHY-TP300-HP-25 | SHY-TP50-HP-19 | SHY-TP100-HP-19 | SHY-TP1000-HP-25 |
| 最大平均功率 | 2W | 10W | 10W | 50W | 100W | 150W |
| 最小功率 | 1mW | 20mW | 20mW | 50mW | 100mW | 100mW |
| 功率分辨率 | 1mW | 0.001W | 0.001W | 0.01W | 0.01W | 0.01W |
| Nolse等效功率(NEP) | 100μW | 4mW | 1mW | 20mW | 0.1W | 0.1W |
| 响应时间 | 1sec | 1.5sec | 1sec | 1.5sec | 2sec | 2.5sec |
| 功率校准不确定度 | ±3% | ±2% | ±3% | ±3% | ±3% | ±3% |
| 功率线性* | ±1% | ±1.5% | ±1% | ±1.5% | ±1% | ±1.5% |
| 光圈 | 19mm | 25mm | 19mm | 19mm | 19mm | 19mm |
| 类型 | HPB | HPB | HPB | HPB | HPB | HPB |
| 吸收光谱范围 | 0.19-11μm | 0.19-11μm | 0.19-11μm | 0.19-11μm | 0.19-11μm | 0.19-11μm |
| 光谱范围 | 0.19-2.1μm, 2.94μm, 9-11μm |
0.19-2.1μm, 2.94μm, 9-11μm |
0.19-2.1μm, 2.94μm, 9-11μm |
0.19-2.1μm, 2.94μm, 9-11μm |
0.19-2.1μm, 2.94μm, 9-11μm |
0.19-2.1μm, 2.94μm, 9-11μm |
| 最大功率密度** | 11kW/cm2 @2W | 11kW/cm2 @10w | 15kW/cm² @10W | 11kW/cm² @40W | 11kW/cm² @40W | 11kW/cm² @40W |
| 冷却 | 风冷 | 风冷 | 风冷 | 风冷 | 风冷 | 风冷 |
| 重量 | 0.2kg | 0.2kg | 1.0kg | 1.5kg | 1.0kg | 1.5kg |
| 尺寸 | 60x60x20mm | 60x60x20mm | 65x65x35mm | 65x65x35mm | 65x65x70mm | 65x65x72mm |
| 连接器长度 | 2.5m | 2.5m | 2.5m | 2.5m | 2.5m | 2.5m |
- 探测器在有效表面的50%处进行中央照射。
** 损伤阈值也取决于功率水平。 - 手机/微信：13242449659电话：0755-89355351 QQ：842471885 邮箱：842471885@qq.com
